Overview

This document describes the installation process for the DvSum Edge Gateway. It covers all aspects of the installation including middleware needed and how to deploy the Gateway/Connector on your machine.

Note: Gateway, Connector, SAWS (Stand-Alone Web Service) and webservice are used interchangeably referring to the DvSum Edge Gateway.

System Requirements

Operating System	Windows XP, 7 - 10 or Windows Server 2008, 2012 and above.
Disk Space	1 GB (free)
Memory	4 GB
Browser	Google Chrome, Mozilla Firefox, Microsoft Edge, Apple Safari

Network Configuration

If DvSum Edge Gateway is to be installed on a server where outside access is restricted by a firewall, you must white-list the following addresses so the gateway can communicate with the DvSum SaaS web application.

1. https://prod.dvsum.com
2. https://s3-us-west-2.amazonaws.com/dvsumprod/SAWS+Logs/

3. mail-smtp.us-west-2.amazonaws.com

Open port for gateway communication

Port 8183 (default port)

Network Diagram

Install System Prerequisites

Check and install Java Runtime (JRE)

1. On your machine, go to Start > Run > type "cmd" > "Run as Administrator"

2. Type "java -version" and hit enter. This will indicate what version of Java (if any) is installed.

2. If Java is not installed, please download and install required version of Java.

For other sources, download and Install Java 8

Note: You may be asked to create an oracle.com account to download Java.

Install Microsoft Access database Engine 2010

(For EXCEL only)

1. Go to www.microsoft.com and search "Microsoft Access database engine 2010 Redistributable"

If 64 bit Java is installed on system make sure to install 64 bit Microsoft Access Database Engine 2010
If 32 bit java is installed on system make sure to install 32 bit Microsoft Access Database Engine 2010

For more details, How to Configure EXCEL/CSV?

Install Python

Find the Python 3.7 installation files.
Download the relevant installer from the Files section (e.g. for Windows 64 bit, install Windows x86-64 executable installer)
Run the installer.
Select the checkbox "Add Python 3.7 to PATH"
Click on "customize installation"
Click next, confirm that "Install for all users" is checked.
The options pre-selected on this step may be left unchanged. Click "Install".

This will install Python on your system.

Confirm installations

Confirm that Java and Python are working well.

java -version
python --version

Install additional required Python libraries

To install python libraries, go to command prompt (Start → Run → type "cmd" → Run as administrator)
Type "pip install pandas numpy XlsxWriter xlrd Flask SQLAlchemy", press Enter.

This will install required Python libraries on your system.

For more details, read Step-by-step Installation of Python

Install Python libraries (No Internet Access from SAWS Server)

Offline Python libs installation ( if internet is not accessible from SAWS server )
1) Download python libs on your machine where internet is accessible
-- create Dvsum_python_libs folder
-- create requirements.txt file inside this folder
-- copy below in requirments.txt
pandas==0.24.1
XlsxWriter==1.1.5
xlrd==1.2.0
Flask==1.0.2
SQLAlchemy==1.2.18
bs4==0.0.1
numpy=1.16.1
-- open cmd and move to newly created folder i.e Dvsum_python_libs
-- run cmd "pip download -r requirements.txt"
2) Now Zip up this folder and copy to SAWS server
-- upzip Dvsum_python_libs
-- open cmd move to libs folder i.e Dvsum_python_libs
-- run command "pip install -t . -r requirements.txt"

Install DvSum Edge Gateway

Download SAWS from DvSum	Log onto https://prod.dvsum.com Go to Administration → Manage Account → SAWS tab Next to the heading "Stand-alone web service information" click "Download". This will download "webservice.zip". Unzip webservice.zip. Optionally move the folder to a more convenient location. This folder will be the webservice root directory. On a machine dedicated to the DvSum Edge Gateway, this will typically be c:\dvsum\webservice or something similar.
Add SAWS to DvSum account	Go to https://prod.dvsum.com Go to Administration → Manage Account → SAWS tab Click "⊕Add" to register a new Edge Gateway. Name: any descriptive name Host Name: enter either the hostname or the IP address where the Edge Gateway will run Port: 8183 by default Help: If installing the Edge Gateway on your own laptop/computer, enter the Host Name as 127.0.0.1
Update configuration.properties file with api.token	Go to Administration → Manage Account → SAWS tab Copy the communication key. Open configuration.properties in a text editor. You'll find this file in folder created earlier. For example: c:\dvsum\webservice\configuration.properties Paste this communication key into configuration.properties as the value for api.token: api.token=KnM15U6GsAcQtbXJMtQV51SRciAG8Het Save configuration.properties. For more details, read Add and Install SAWS as a service
Install DvSum Edge Gateway as a service	Go to downloaded webservice root directory. For example: c:\dvsum\webservice Right click "saws_service_install.bat" run as administrator. This will install the windows service "DVSUM SAWS" along with some closely related services. Verify DvSum SAWS is running by Start* → type Services → open Services → scroll to "DVSUM SAWS" in the services list.*
SAWS public IP white-listing	In order to establish the communication channel between the DvSum Edge Gateway (SAWS) that you just installed and the DvSum SaaS Web Application, the SAWS public IP must be white-listed in the DvSum Web Application. Go to Administration → Manage Account → Application Security → IP Address White List Enter the public IP address of the machine on which the DvSum Edge Gateway is installed. Click Add.
Add SAWS exception to your browser	Go to https://prod.dvsum.com Look at the SAWS icon on top right corner. If the SAWS cloud icon is green, SAWS is successfully installed and running. If the SAWS cloud icon is red, click on it. This will open a window prompting you to add an browser exception for SAWS. Click "Advanced". Click "Proceed to [hostname or IP address] (unsafe)". You are connecting to the SAWS instance that you just installed. It is fully secure. For more details, see Why do I need to Add exception? Now the SAWS cloud icon will turn green, and the SAWS installation is complete.
Copy SAP DLLS to c:/windows/system32	1. Go to webservice root directory > click on Sap Dependencies folder > SAP JARS AND DLLS For 32-bit operating system, click on SAP 32bit jars and dll folder. Copy 32-bit sapjco3.dll and paste in c:\windows or c:\windows\system32 For 64-bit operating system, click on SAP 64bit jars and dll folder. Copy 64-bit sapjco3.dll and paste in c:\windows or c:\windows\system32 2. make sure folder address where dll has been pasted is added to system path variable i.e right click on (my computer icon or Computer or this PC icon) > Properties > Advanced System Settings > Environment Variables > find 'path' in System Variables. If c:\windows and c:\windows\system32 is added in path leave as it is otherwise add following String in the beginning of path c:\windows;c:\windows\system32;

DvSum Edge Gateway Logs

The DvSum Edge Gateway maintains logs on the machine where its running. This is a log file for all actions performed by SAWS. If there is an error, this log can help with troubleshooting the root cause of the issue.

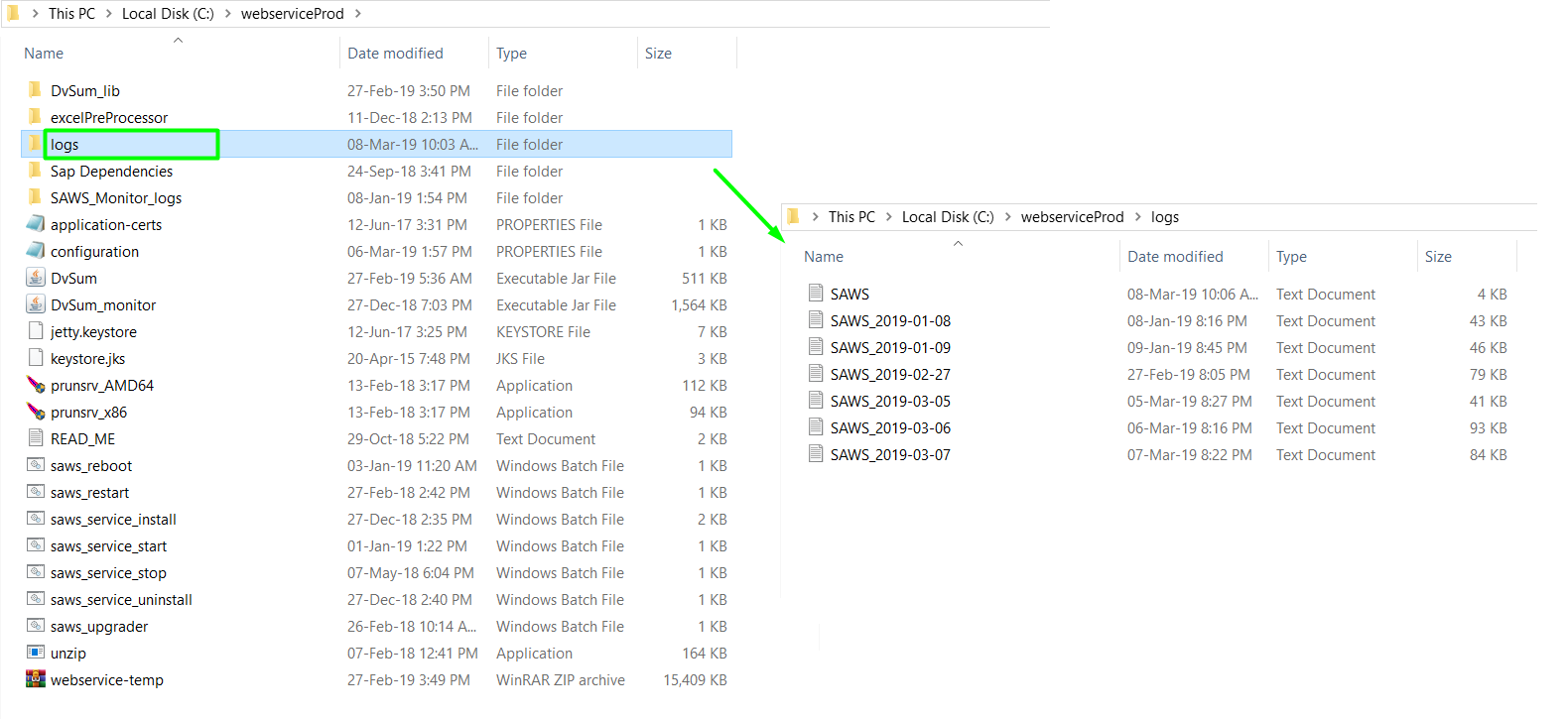

The logs are found in the logs subfolder. For example: c:\dvsum\webservice\logs

The server is configured to rotate logs daily. Rotated log files follow this naming convention: SAWS_2023-05-15.log.

The undated file, SAWS.log, is the latest.

SAWS Maintenance and Advanced settings

After the basic SAWS setup, some advanced configuration options are available. You can easily manipulate the settings from SAWS configuration file.

For details, read SAWS Advanced Settings (Configuration.properties file)

SAWS Upgrade

When a newer version of SAWS is available on DvSum, you will see the notification for upgrade. It will update SAWS in one click.

For details, read SAWS Update.
