Rules in DvSum can be executed from the UI, scheduled through the scheduler and can also be called programmatically using an API. To run a rule or set of rules through a script, you can generate a script for those rules using the Schedule Rule Menu.
The script takes the form of https://<saws address>:<saws_port>/runJob?jobId=<jobid>
The script runs the rule exactly like running from the UI or the Scheduler, with the difference being what is returned back from the script. Below is a screenshot of what is returned from the script. The 2 elements are return_code and return_remark.
The return_code always contains 3 values
0 - PASS if rule has 0 exceptions or exceptions are less than lower bound of threshold
-1 - WARN if the rule has exceptions but exceptions are greater than lower bound but less than upper bound
-2 - FAIL if the rule has exceptions that are greater than upper bound limit.
The return_remark contains text that will provide the name of the rule additional information that you typically see in system remark field in the Rule Detail page.
Example
This rule has threshold set between 0 - 300
Since exception are 256 which is > 0 but less than <300, the return_code is -1 as a Warning.
Executing the rule via API:
Users can generate the script for the rule and use the script URL to execute the rule. Lets get started step by step:
Step 1: Open the Dvsum application, go to Audit >> Manage Rules >> select any existing rule >> click More action >> select Schedule Rule as shown below:
Step 2: Dynamic Source Script Generation

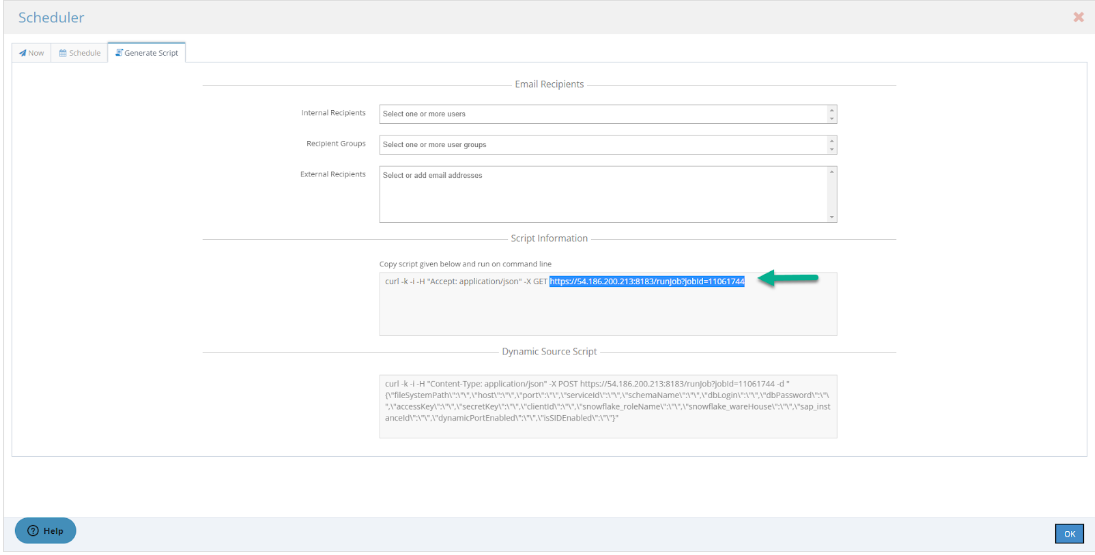

Go to Generate Script tab and click on the button at the bottom to generate the script as shown below;

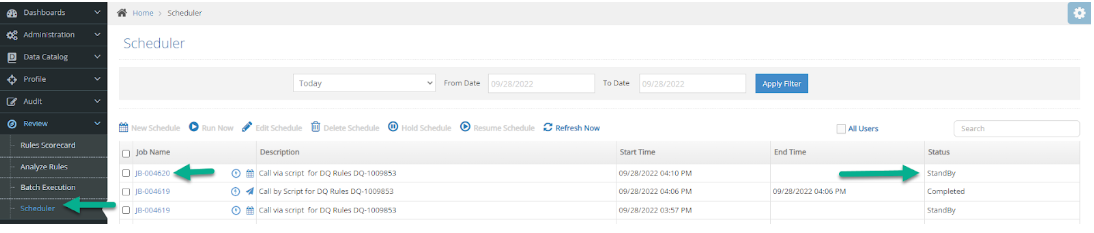

Step 2.1: A job is created against the rule. Now go to the main scheduler page, search the rule, and a newly created job will be visible with a description and status as “stand by”.

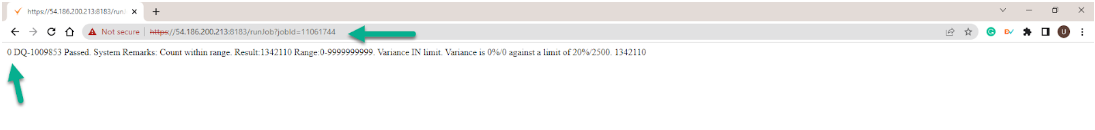

Step 3: Copy the script url and paste it into Google Chrome and press Enter. Execution starts and on dvsum application, the job description and status get executed as well.

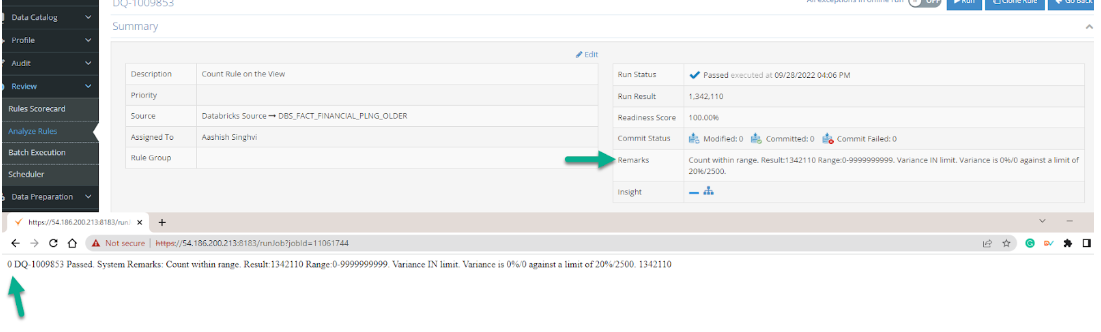

Step 3.1: Once the execution is completed. it will print the remarks same as shown on the rule detail page in Dvsum.

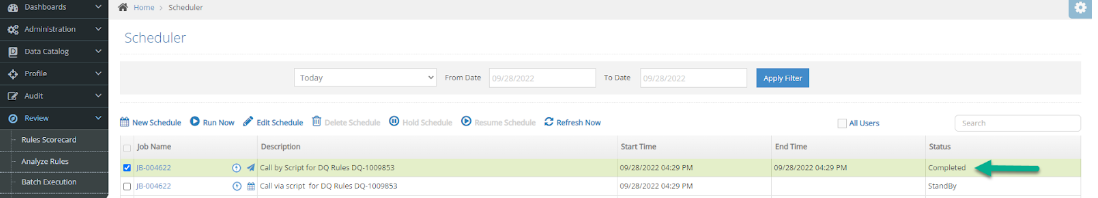

On the Scheduler page, the job status changes to "Completed".
Executing the rule API via ADF:

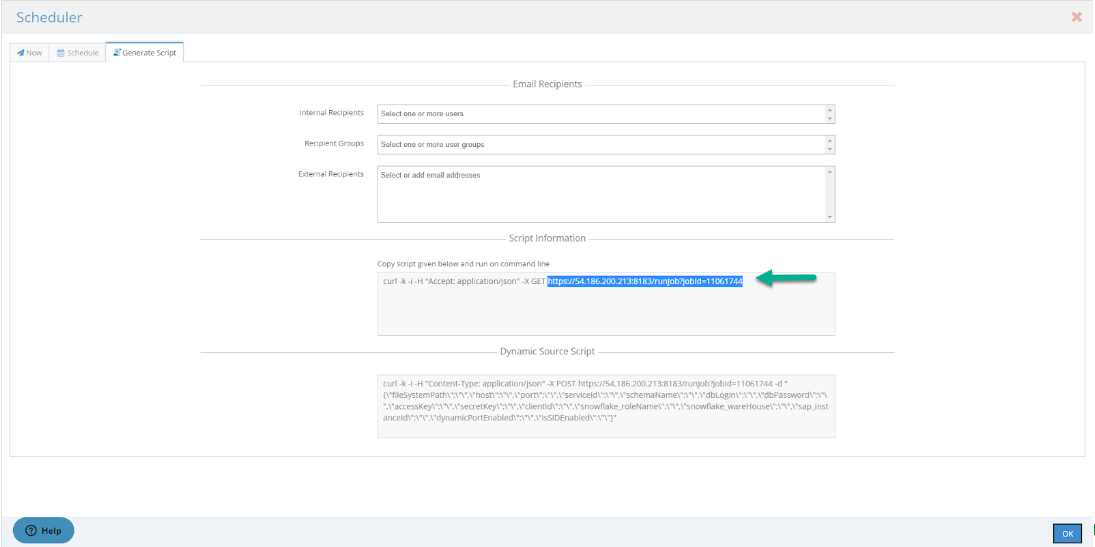

Step 1: For the existing Rule, select schedule to Generate the script URL as shown above, and copy the url.
Step 1.1: A job is created against the rule. Now go to the main scheduler page, search the rule, and a newly created job will be visible with a description and status as “stand by”.
Step 2: Go to Azure Data Factory and paste the copied URL in api call. Click on Debug button to start the execution.
Step 2.1: Once the execution is completed. it will print the remarks in API call output same as shown on the rule detail page in Dvsum.
On the Scheduler page, the job status changes to "Completed".
