Field Dictionary – Help Center

Overview:

The Field Dictionary in DvSum provides users with a comprehensive view of all data columns across different sources and datasets. It consolidates metadata, profiling details, and data quality insights into a structured interface, enabling users to explore and manage their data efficiently.

Accessing the Field Dictionary

On the left-side menu of the DvSum application, click on Field Dictionary to navigate to its detailed page.

This page displays all column-specific details, provided that the sources are connected and cataloged.

Field Dictionary Details

The Field Dictionary provides an organized view of column-related metadata, including:

Source
Table
Column Name
Business Name
Column Description
Data Type
Profiling Info
Range Value
DQ Score
Column Sub-type

Column Detail Page

Clicking on a Column Name opens the Column Detail Page, which contains three tabs:

Overview – Displays general metadata and descriptions.
Profiling – Shows profiling statistics and insights.
Data Quality – Highlights rule violations and data quality metrics.

Overview Tab:

The Overview tab in the Field Dictionary comprises several key sections that provide a structured summary of column attributes and configurations. These sections typically include:

Column Name & Description: Displays the name of the column along with a brief description of its purpose.
Data Type: Specifies the type of data the column holds (e.g., String, Integer, Boolean).
Source & Lineage: Identifies the origin of the column and traces its transformation across datasets.
Usage & Dependencies: Indicates where and how the column is utilized within the system.
Constraints & Validation: Lists any applied rules, such as mandatory columns, unique constraints, or default values.
Tags & Classification: Allows categorization of columns for better organization and governance.
Additional Info: Displays any extra details relevant to the column.
Similar Columns: Suggests columns with similar characteristics to aid in analysis and comparison.

Editing and Deleting a Column
On the Overview page, users have the option to either Edit or Delete a column.

Edit: Clicking the Edit button (represented by a blue button with a pencil icon) allows users to modify the column’s properties, such as its name, tags, or other metadata.

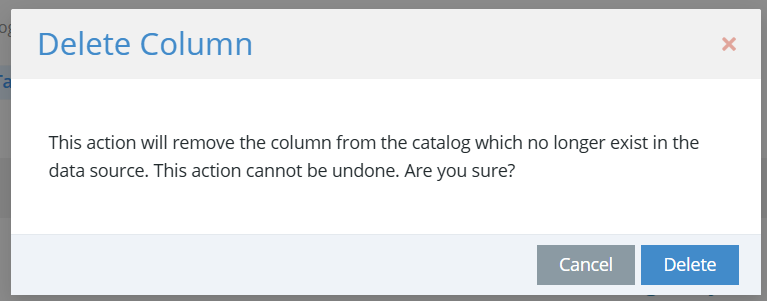

Delete: The Delete button (represented by a red trash bin icon) enables users to remove the column permanently. Users should exercise caution while deleting, as this action may not be reversible.

Profiling Tab:

The Profiling tab in the Field Dictionary contains the following sections:

Statistics: Displays key metrics such as record count, number of empty/null values, unique values, and completeness percentage.
Information: Provides details including the last profiled date, min-max values, whether the column is a primary key or nullable, technical data type, column position, size, and the number of fractional digits.
Note: The Min-Max values depend on the column's data type. For string data types, the minimum and maximum values are determined based on lexicographical order.
Visualization: Includes graphical representations of data distributions, with options to view distribution and pattern insights.

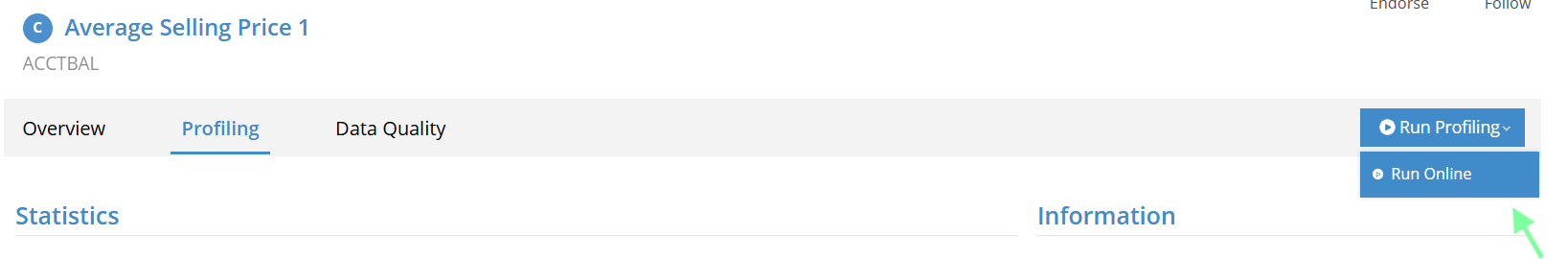

Run Profiling: An option is available to initiate online profiling for updating column statistics and insights.

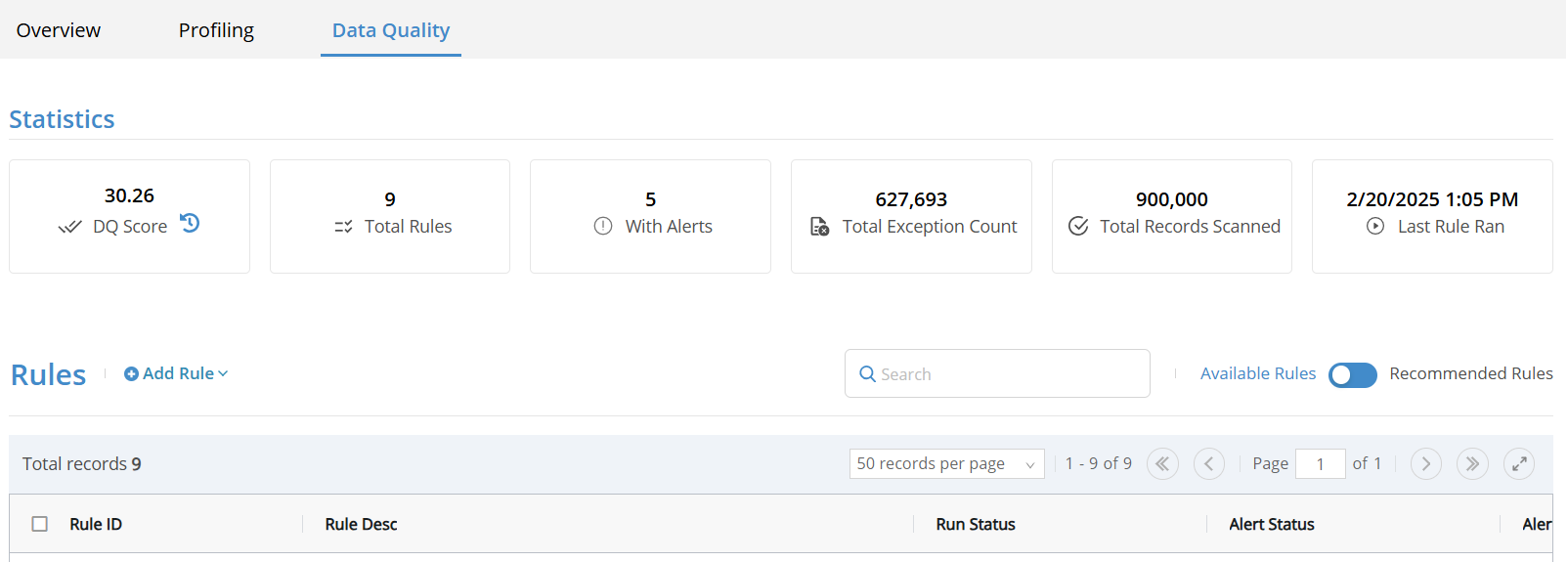

Data Quality Tab:

The Data Quality tab in the Field Dictionary contains the following sections:

Statistics: Displays key metrics such as DQ Score, total rules, rules with alerts, total exceptions, total records scanned, and last rule execution status.
Rules: Lists all data quality rules applied to the column, including details such as rule ID, description, run status, alert status, and exception count.
Add Rule: Provides an option to add new data quality rules for monitoring and validation. Only the following three rules can be applied:
- Blanks: Checks for missing or empty values in the column.
- Value Range: Ensures that data falls within a specified range.
- Data Format: Validates the format of the data based on predefined patterns.
