Overview

This guide outlines the steps to configure Amazon S3 as a data source within our SaaS application. It details the process of authenticating and adding your Amazon S3 source using one of two distinct methods, followed by running scans to retrieve your data.

Connect Your Amazon S3 Data Source

To integrate your data from Amazon S3, our platform offers two flexible connection methods:

1. Use Existing Resources (Connect to Your Existing S3 and Glue Setup)

Choose this option if you have already independently set up your Amazon S3 environment, including the creation of S3 buckets, AWS Glue databases, and crawlers. In this scenario, our platform will connect directly to your existing Glue Data Catalog to access your data. Because the necessary administrative tasks for your S3 data source have already been completed outside of our system, this method requires only limited permissions for our platform to read the metadata defined in your Glue databases.

Amazon S3 Data Source Connection: Use Existing Resources (Limited Permissions)

2. Create New Resources (Platform Interface Setup)

Select this option to utilize our platform's user interface to create and manage the necessary AWS resources for accessing your S3 data. This allows you to define and build your data infrastructure directly within our application. You will have the ability to create S3 buckets, define AWS Glue databases, and set up crawlers through our intuitive interface. Consequently, this method requires elevated permissions to enable the creation and management of these resources on your AWS account.

Configure S3 Data Source in DvSum (Elevated Permissions Required)

Once you've selected the connection method that aligns with your current setup and desired level of management, proceed with the relevant instructions to configure the necessary IAM user and assign the appropriate permissions.

Step-by-Step Configuration

Step 1: Add Amazon S3 as a Source

Navigate to Administration → Data Sources → ⊕ Add Source.

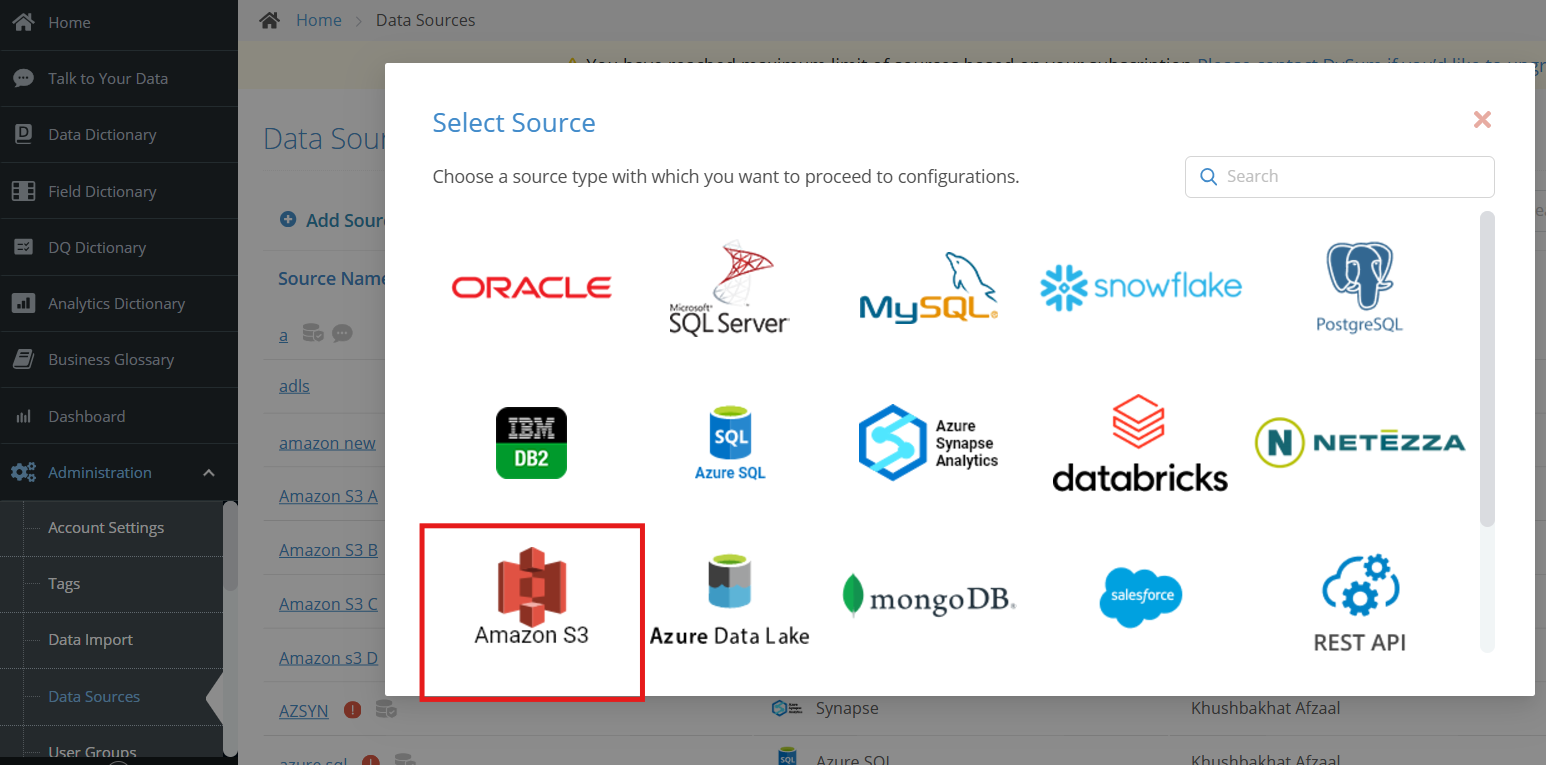

Select Amazon S3 as the source type.

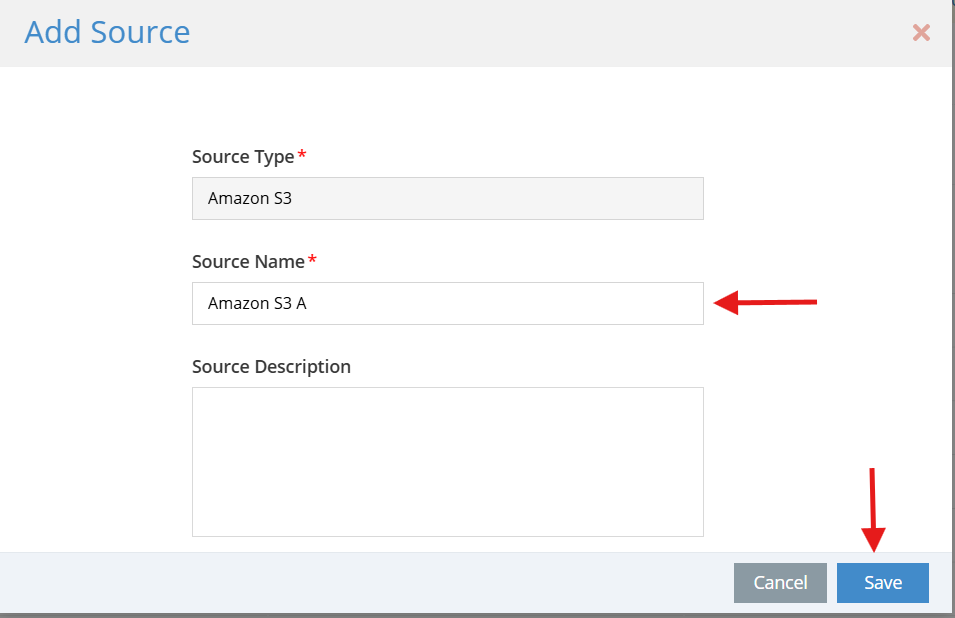

Provide a name for the source and click Save.

Step 2: Configure Connection

After saving, you will be redirected to the connection settings page.

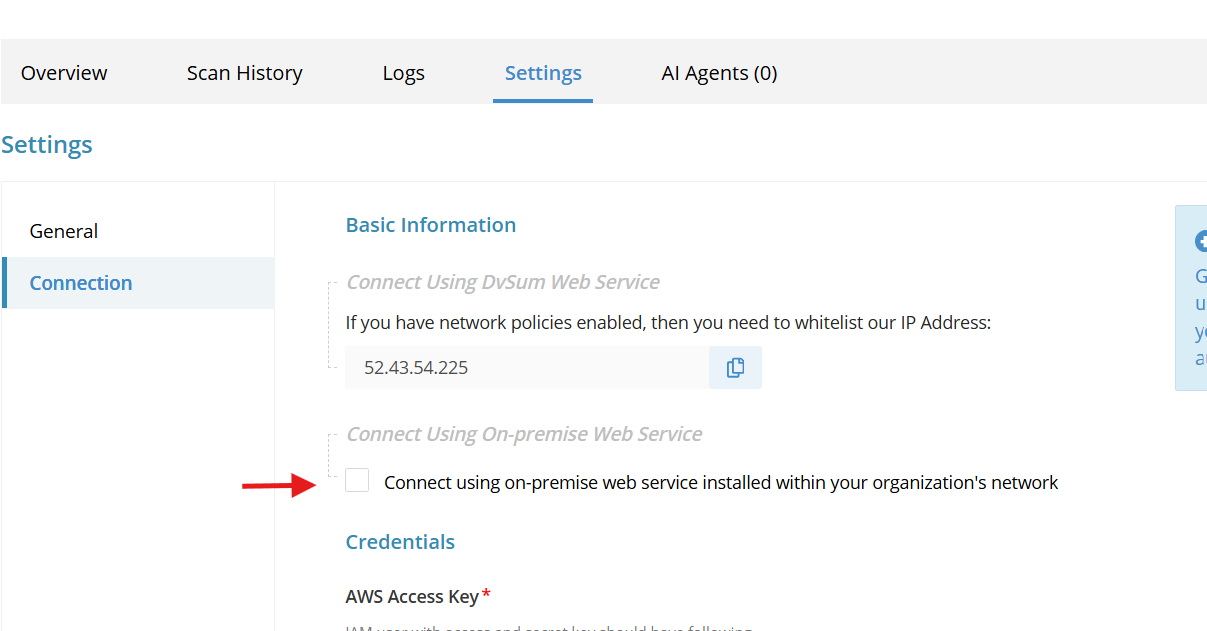

Enable the checkbox for On-premise Web Service and select the Gateway, or use DvSum Web Services (default).
In the Credentials section, enter the AWS Access Key and Secret Key.
Click Authenticate to verify the connection.

Note: For more information regarding On-premise Web Service installation, click here.

Note: The SAWS type is set to cloud by default. For additional details about Cloud SAWS, click here.

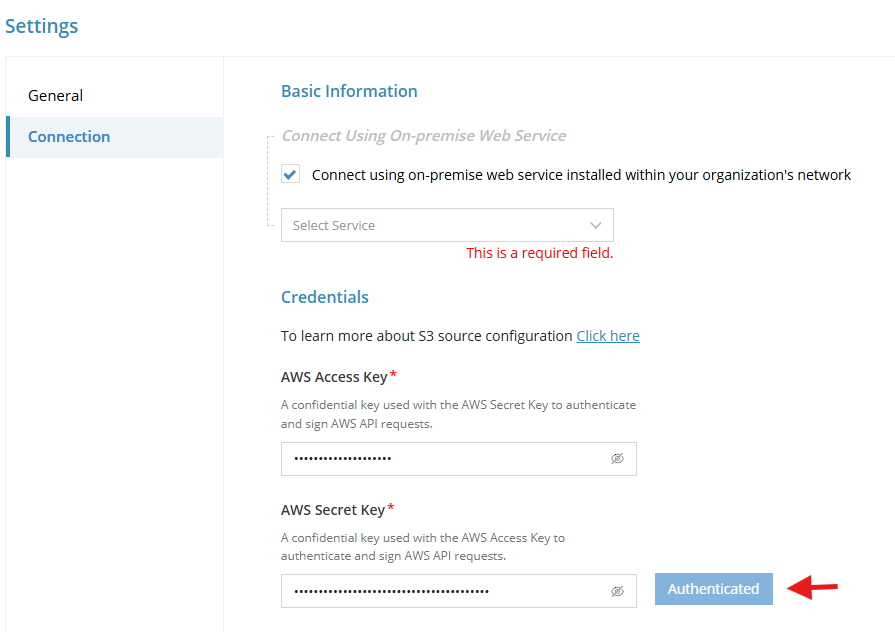

In the Credentials section, provide the correct AWS Access Key and AWS Secret Key, then click Authenticate to verify the source.

How to create an AWS IAM User to configure S3 Data Source in DvSum?

Configuring Data Retrieval

Scenario 1: Use an Existing Glue Catalog

Select the Glue Catalog from the dropdown menu, and input the Staging Bucket and Folder.

Scenario 2: Create a New Glue Catalog

Enable 'Create New' button

Create Source Bucket:
- Click + Create next to S3 Source Bucket.
- DvSum recommends using the prefix "dvsum-s3-source-" to ensure a unique bucket name.
- Enter a valid bucket name (AWS Bucket Naming Rules) and click Save. The bucket will be created and automatically added to the dropdown list.

How to Create an AWS S3 Bucket?

Create Staging Bucket:
- Click + Create next to S3 Staging Bucket.
- Use the recommended prefix "dvsum-s3-source-" to create a unique bucket name.
- Ensure that the Source Bucket and Staging Bucket have distinct names.
- Enter a valid bucket name and click Save. The bucket will be created and added to the dropdown list.

Set Folders (Optional):
- Specify folders for the S3 Source Bucket and S3 Staging Bucket if required.
- Files within the specified folder in the Source Bucket will be cataloged.
- Temporary staging files will be created in the specified folder in the Staging Bucket.

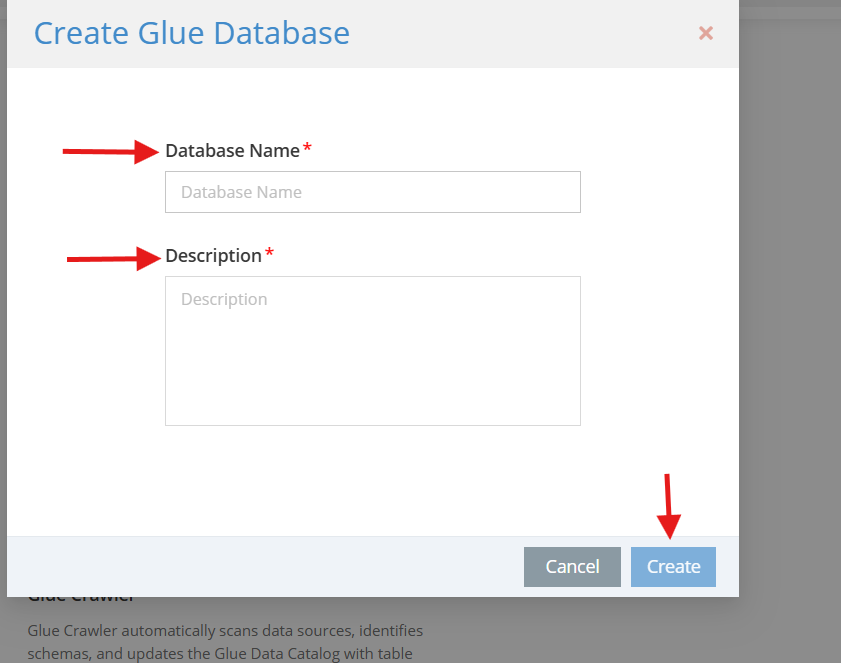

Create Glue Database:
- Click + Create next to Glue Database.
- Define a database name that complies with AWS Glue Database naming requirements (The name must be in lowercase letters and cannot be longer than 255 characters) and provide a description.
- Click Save.

How to Create an AWS Glue Database?

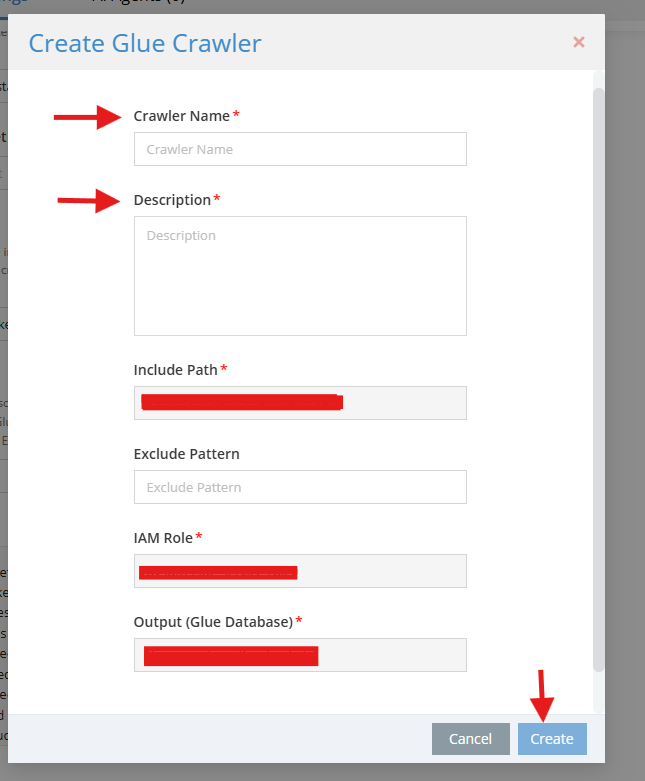

Create Glue Crawler:
- Click + Create next to Glue Crawler.
- Define a crawler name that follows AWS Glue Crawler naming requirements (The name you choose can be up to 255 characters long, but certain special characters and symbols are not allowed.) and provide a description.
- Click Save.

How to Create an AWS Glue Crawler?

Note: If the action fails, the user should verify and check the following:

Certain special characters are not supported in column names. Examples of unsupported characters include:
- Comma separator in column names (e.g., A,B)
- Latin Unicode (e.g., U+0000)
- ISO Unicode (e.g., UTF-32)
- Windows Unicode (e.g., U+1F937)
Ensure that there are no carriage returns within the column data, and it should be presented in a single line.

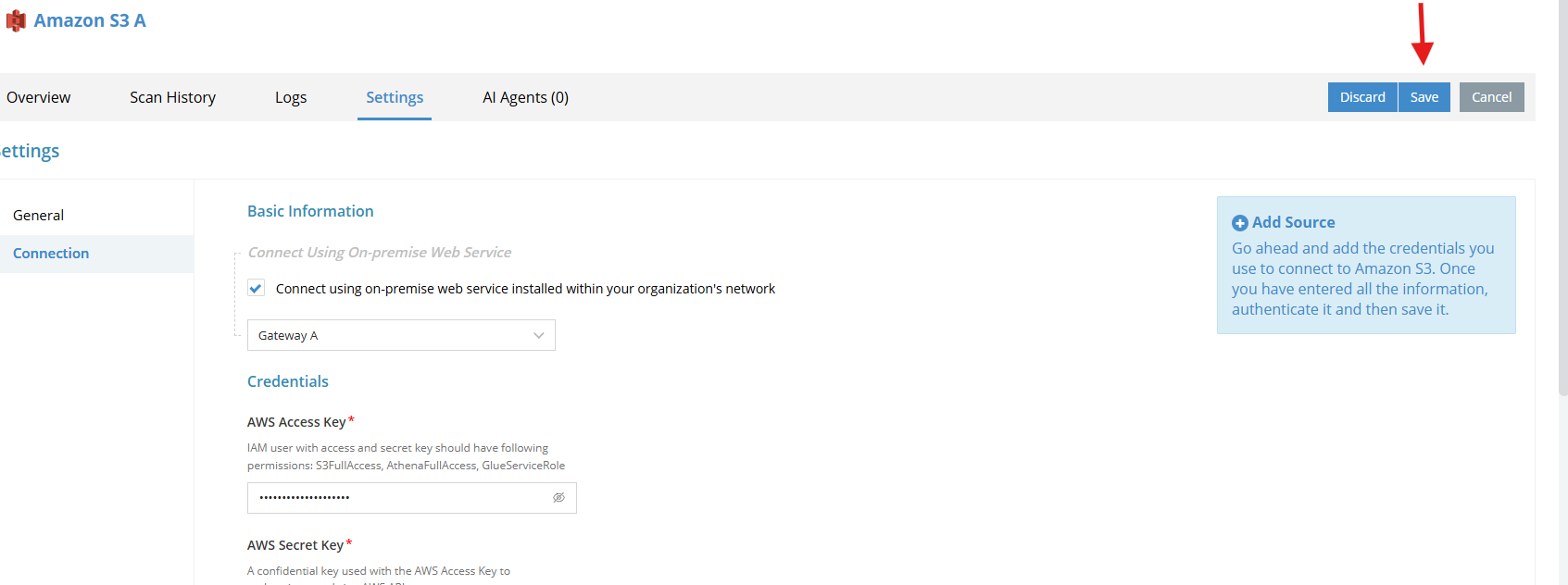

Step 3: Save Connection Information

After the credentials are authenticated, scroll to the top of the page.
Click the Done button in the top-right corner.
Click Save to save the source connection.
Finally, click Test Connection to verify the setup.

Step 4: Scan the Source

Navigate to the Scan History Page and click the "Scan Now" button.
A job will be created, and once its status shows Completed, the scan for the new Amazon S3 source will be finished successfully.

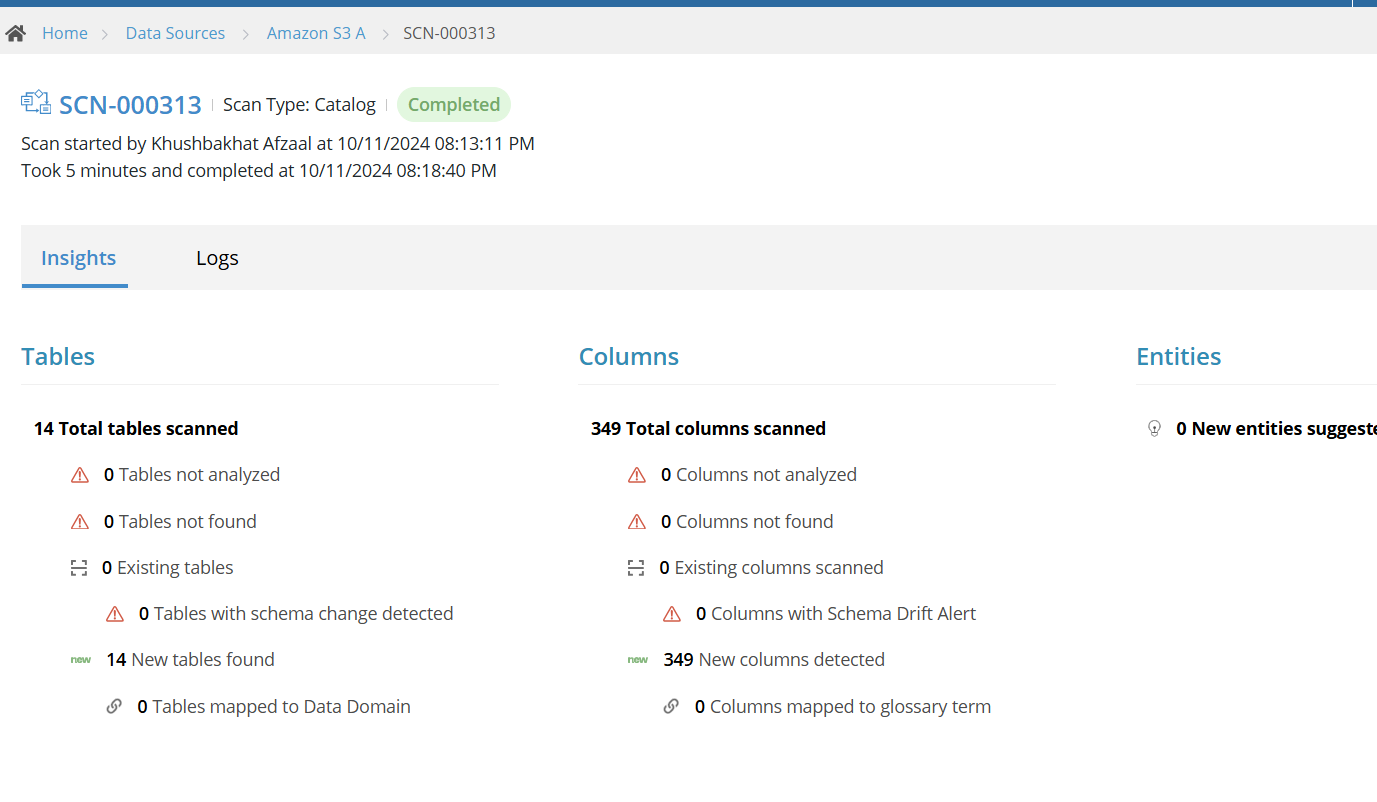

After the scan is complete, click on the Scan Name to open the Scan Summary page for this scan.

On the Scan Summary page, you will see insights from the scan, including the number of new tables and columns retrieved from the database that was selected earlier.

To gain more insights into the details of the tables, click on "Data Dictionary" from the sidebar. A table listing view will appear. Then, click on the "Recently Refreshed" tab. This tab will display all the tables fetched in the recent scan. Click on the table names to view more details on the respective table's detail page.
