Overview
DvSum allows users to execute jobs programmatically using APIs. This guide provides step-by-step instructions to trigger jobs, check execution status, and handle API responses efficiently.
Each job can run in one of two distinct modes: it can either be scheduled to run at predetermined times or triggered via an API for on-demand execution. However, only one method can be active at a time; jobs cannot operate as both scheduled and API-triggered simultaneously. The mode of execution should be chosen based on specific requirements to ensure consistent operation under a single, exclusive mode.
For more details on how to create a job, refer to the Creating a New Job article.
Prerequisites
Before executing a job via API, ensure you have the following:
- A Job: The job must be configured for API execution (it cannot be scheduled).
- API Key: This key is required to authenticate your API requests.
API Endpoints for Job Execution
1. Execute Job (POST Request)
This endpoint triggers the execution of a job.
-
Endpoint:
POST https://apis.dvsum.ai/integration/jobs/[job_id]/execute
2. Get Job Execution Details (GET Request)
This endpoint retrieves the status and details of the job execution.
-
Endpoint:
GET https://apis.dvsum.ai/integration/jobs/[execution_id]/details
Request Parameters
Include the following headers for both POST and GET requests:
- x-api-key: API_KEY
- Authorization: default
- Content-Type: application/json
Job Setup
Step 1: Configure the Job for API Execution
- Navigate to the Schedule tab in the DvSum platform.
- Select the schedule type as Execute via API.
For detailed instructions, refer to the Creating a Job article.
Step 2: Generate API URLs
Click on Generate API URL. This will generate both the POST and GET request URLs needed for API execution.
Examples of Job Execution via API
To facilitate job execution via API in DvSum, three main approaches are available: manual execution, using Postman, and script automation. Each method provides options for managing job execution and monitoring through the API, with step-by-step instructions provided for each option below. The approach can be selected based on workflow and technical requirements.
Manual Execution
This section covers the process for manually executing jobs via API. If you prefer direct control over job execution, follow this step-by-step guide.
Step-by-Step Guide to Executing Jobs via API
Step 1: Execute the Job
curl -X POST https://apis.dvsum.ai/integration/jobs/[job_id/execute
-H "x-api-key: API_KEY"
-H "Authorization:default"
-H "Content-Type: application/json" \
-
Copy the POST request URL and paste it into your command prompt or API client (e.g., Postman).
-
Run the command to execute the job:
Step 2: Retrieve Execution Details
curl -X GET https://apis.dvsum.ai/integration/jobs/[execution_id]/details
-H "x-api-key: API_KEY"
-H "Authorization:default"
-H "Content-Type: application/json"\
-
After executing the job, copy the GET request URL and paste it into your command prompt or API client.
-
Replace the following placeholders:
-
[execution_id]with the execution ID from the POST request. -
[API_KEY]with your valid API key.
Run the GET request to retrieve job execution details:
-
Step 3: View Execution Details
- The GET request will display the status and other details of the job execution once completed.

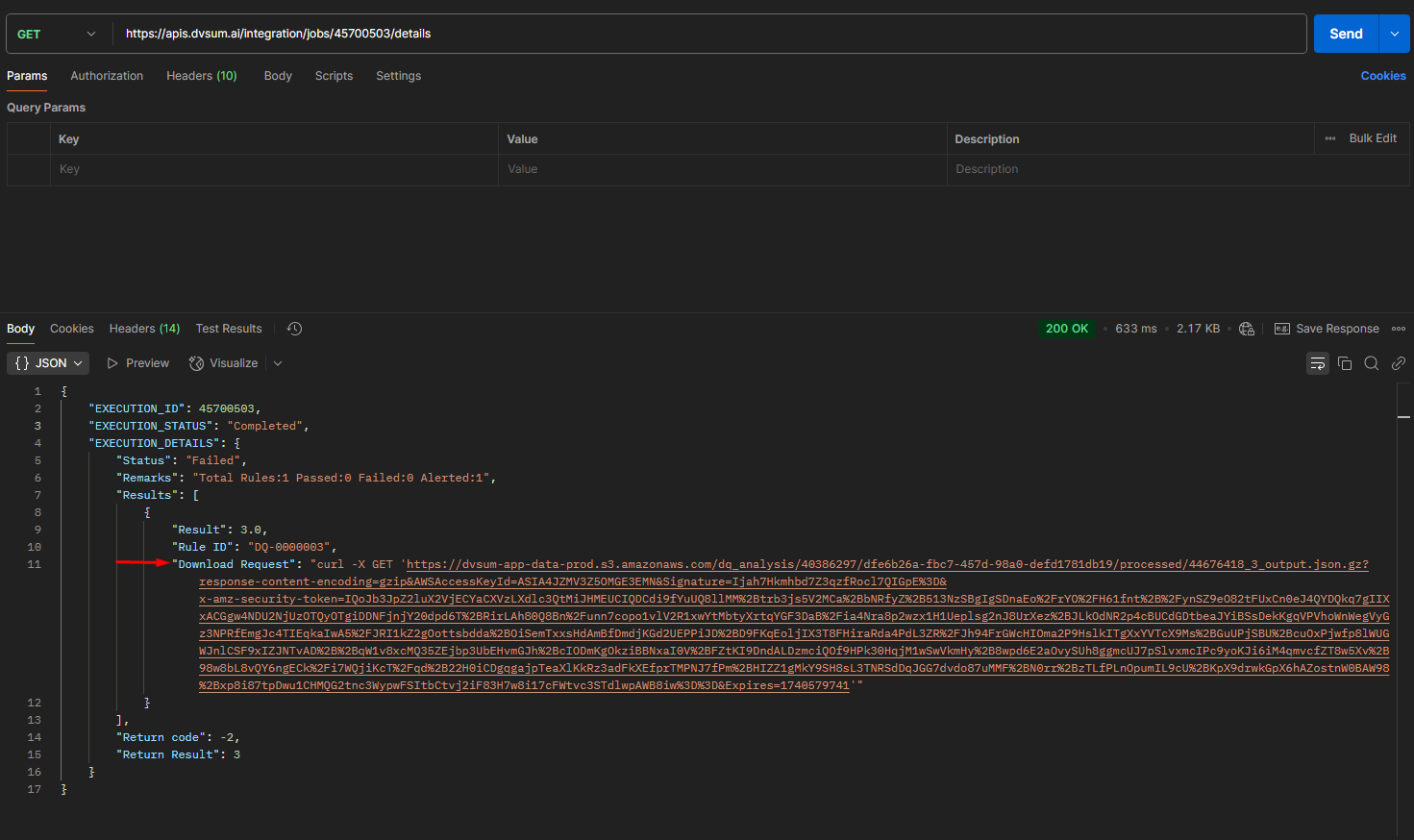

Step 4: Fetch Exception Records
-
Case1: On-prem Gateway
- For an on-prem gateway, exception records can be downloaded, and the requested URL can be accessed using the provided x-api-key in the response.
-
Case 2: Cloud Gateway
- For a cloud gateway, exception records can be downloaded using the pre-signed URL provided in the response.
Note: Exception records can only be downloaded up to a limit of 10,000 records.
Using Postman
Enhance the process by importing the API requests into Postman for more structured testing. This method allows you to interact with the API and automate requests efficiently visually.
Calling API Endpoints for Job Execution

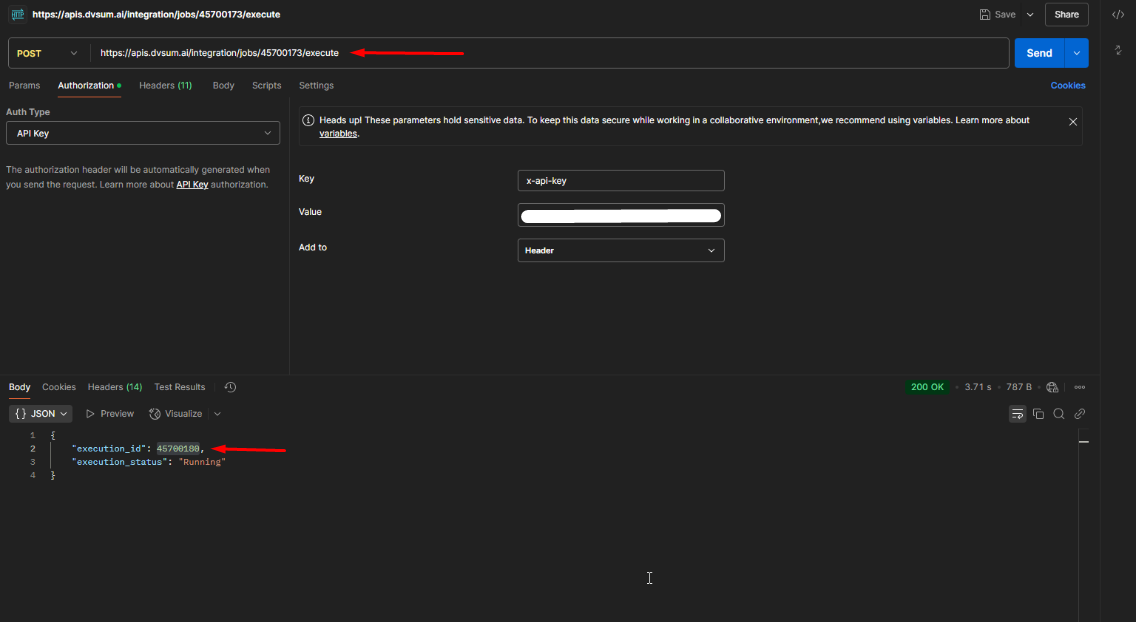

1. Execute Job (POST Request)
This endpoint triggers the execution of a job.
-
Endpoint:
POST https://apis.dvsum.ai/integration/jobs/[job_id]/execute

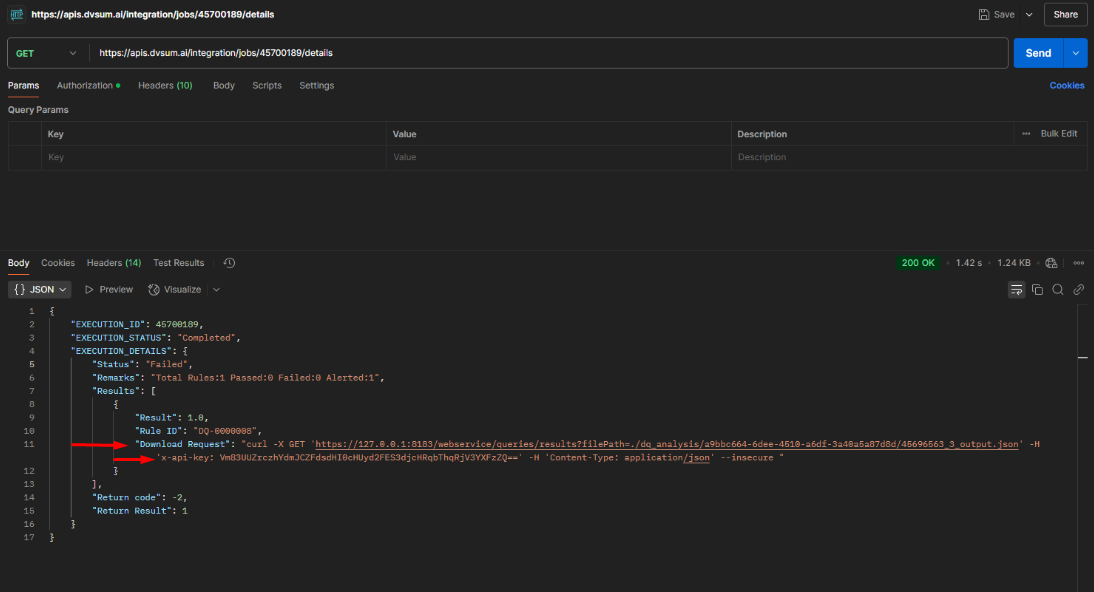

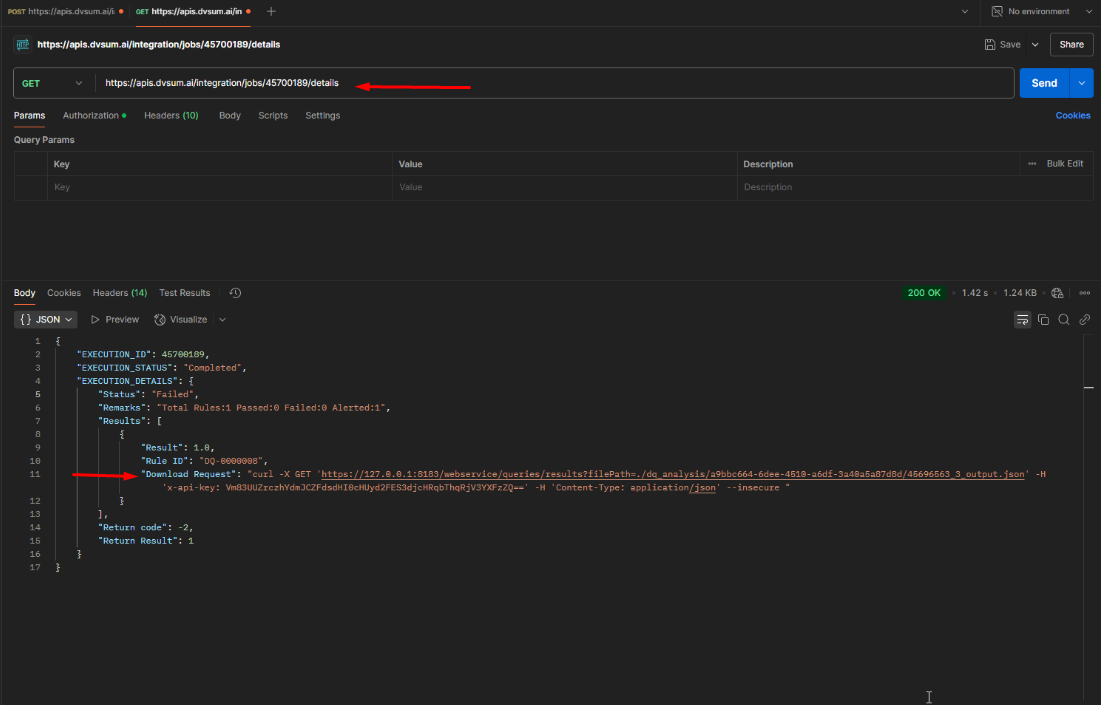

2. Retrieve Execution Details (GET Request)
This endpoint retrieves the status and details of the job execution.
3. View Execution Details

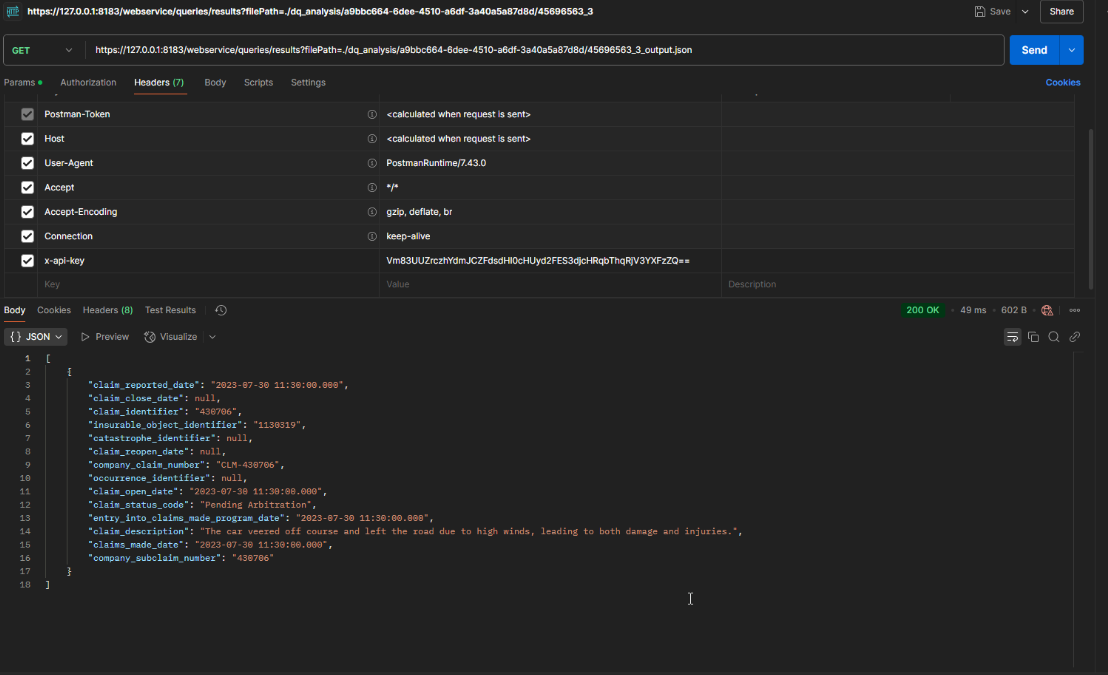

The provided download request URL in the execution details can be used to view the execution details.
Script Automation
Automate job execution by using a script. This method is ideal for users who want to integrate the API into their workflow. Sample scripts can be provided for reference to help automate repetitive tasks.
